Factory-grade cable connections, out in the field.
What used to take 2 days, now takes 2 hours.
Connecting two HV or EHV conductors in the field has always been slow and difficult. It calls for highly skilled, certified technicians, and most methods start by cleaning every strand before the work can even begin. The larger the cable, the harder it gets.
ReliBond's Cold Spray process needs no prior cleaning or wire preparation. The machine builds a low-loss conductive coating directly onto each conductor face and handles the critical work itself. What used to take days comes down to hours, delivering consistent, repeatable quality every time.
Terminator In-Field
The machine that brings the connection to the site.
What

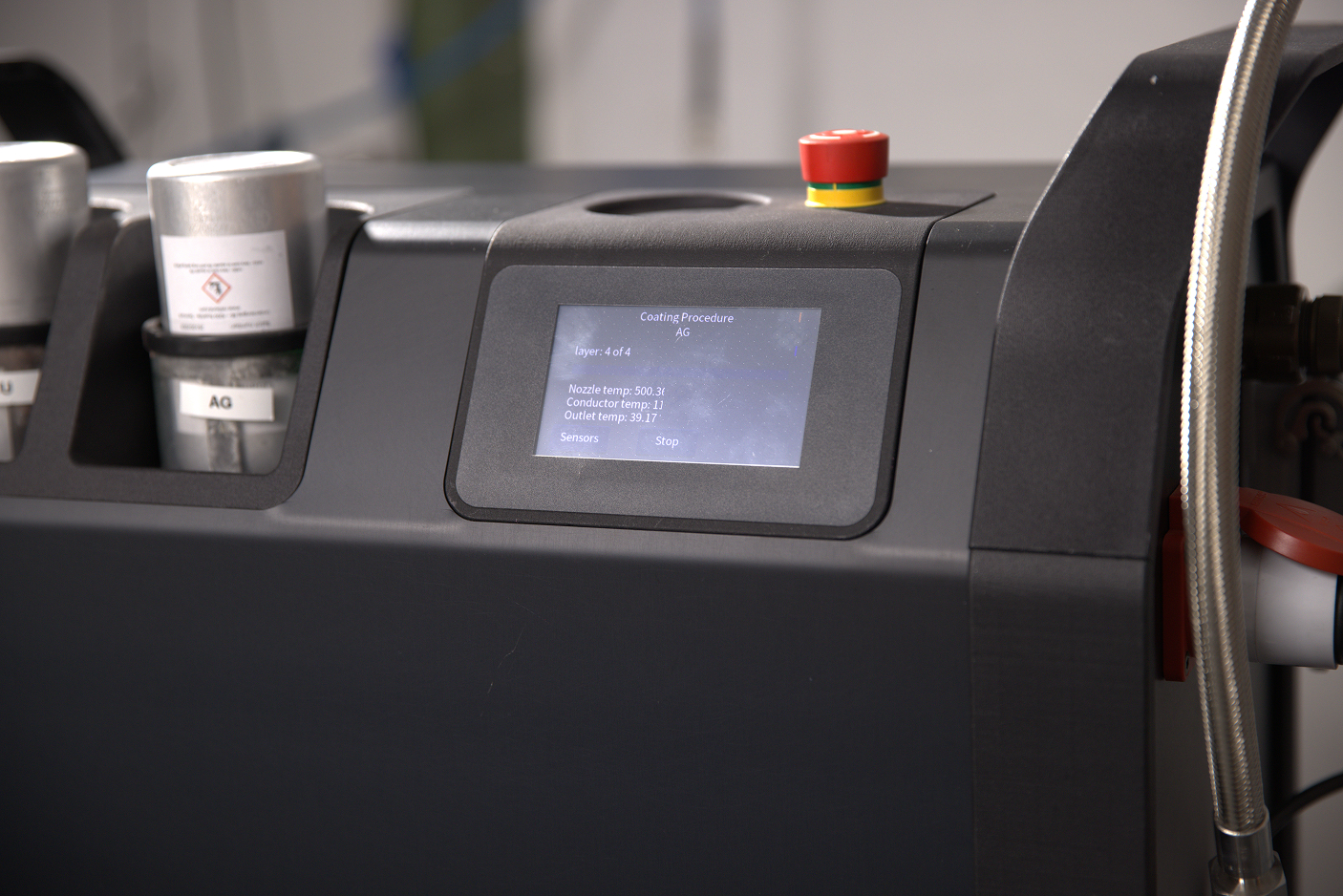

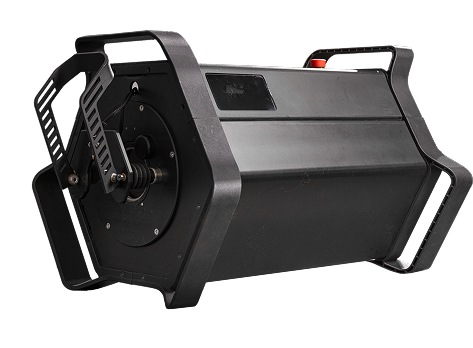

The Terminator In-Field is ReliBond’s machine for field installation of HV and EHV cable connections. It brings a controlled, machine-driven connection process directly to the installation site, making it possible to achieve consistent, factory-grade results outside of a controlled environment. Built for demanding field conditions, it delivers a repeatable and reliable process while reducing the need for highly specialized manual work.
How

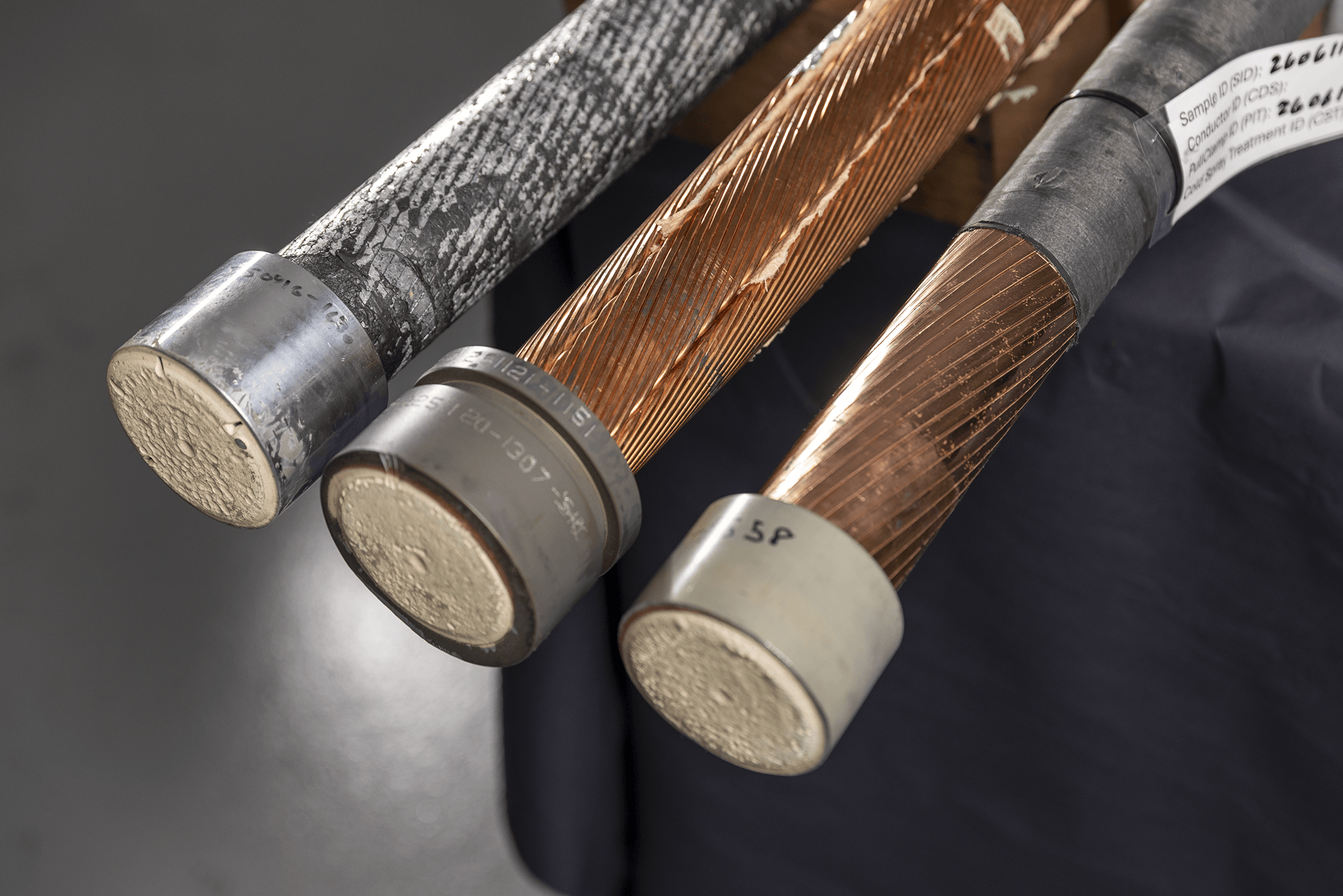

It establishes the electrical connection between the cables using Cold Spray technology directly in the field. The machine applies metal powder to the cable ends at supersonic speed, creating a dense and highly conductive metallic layer. The process finishes with a silver layer that creates a silver-to-silver connection, enabling a reliable electrical connection, even for an aluminium-to-copper transition.
Advantages
✓
Reduces installation time from 2 days to 2 hours per connection
✓
Delivers the same reproducible result every time, regardless of operator skill
✓
Works across conductor materials, designs and cable systems: Al, Cu, AC, DC, wire and sector
✓
Logs and documents every parameter automatically (full audit trail)
✓
Operated by your own technicians after only a few days of training
Connecting cables in the field is where ReliBond delivers the most value, and where conventional methods struggle most.
AlCuCon Connector
The state of the art all type cable connector
What

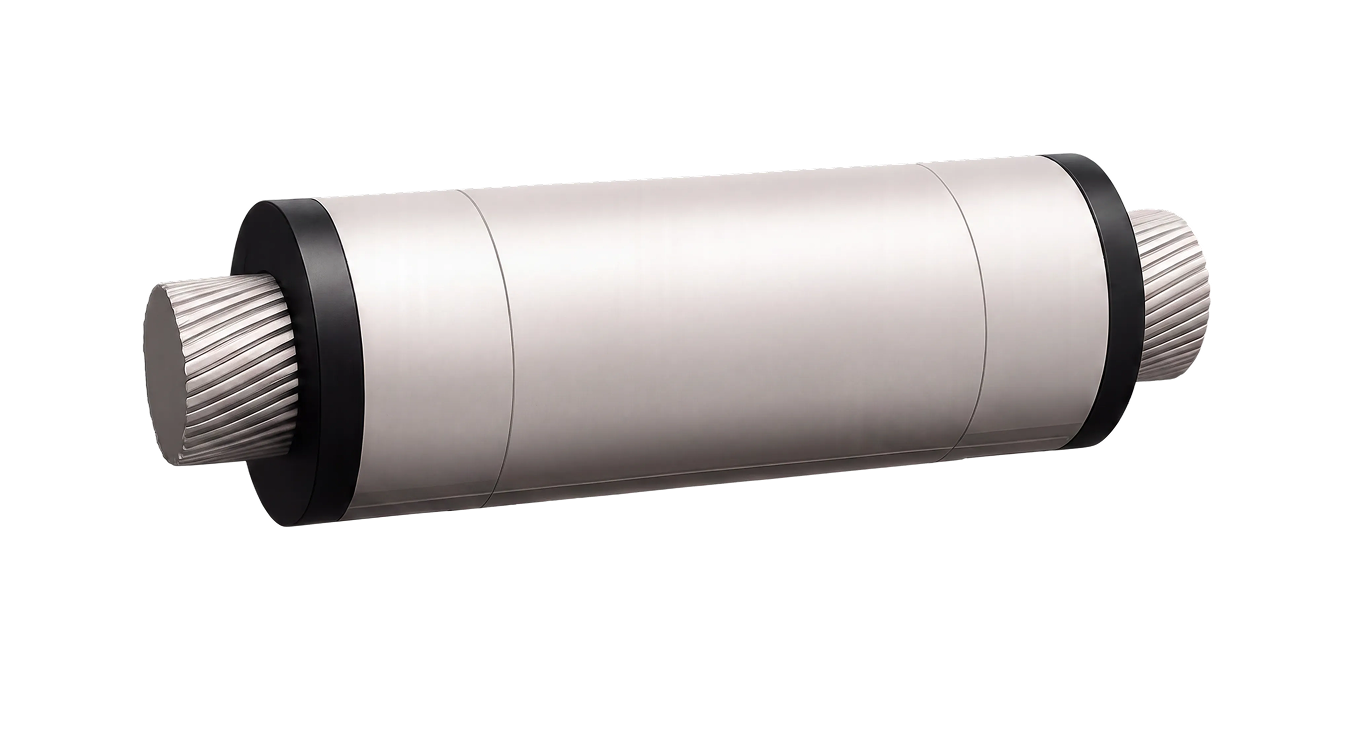

AlCuCon is ReliBond’s connector system for permanently connecting two HV or EHV conductors inside the cable joint. It forms the physical connection between the prepared conductor ends and is designed as an integral part of the finished cable joint. While the Terminator moves on to the next installation, the AlCuCon remains with the joint, providing a stable and reliable connection throughout the cable’s service life.
How
Each AlCuCon connector is tailored to the project’s specific cable design, conductor size and material, rather than relying on a standard one-size-fits-all solution. It brings the prepared conductor ends together in a mechanically stable, low-resistance connection. The silver contact layers created by the Terminator provide a silver-to-silver interface, enabling reliable connections across different conductor materials, including aluminium-to-copper transitions.
Advantages
✓
Fits every conductor, size, and material across HV, EHV, AC, DC, and Al-to-Cu transitions
✓
Silver-to-silver connection designed to remain stable throughout the cable’s service life, with no risk of thermal runaway
✓
Shortest possible current path, for less heat and less space
✓
Spring washers keep constant pressure under changing mechanical and thermal load
✓
Clear quality markers confirm correct mounting and tightening
One connector for every conductor, stable for the life of the cable. The Terminator makes the connection – the AlCuCon holds it.

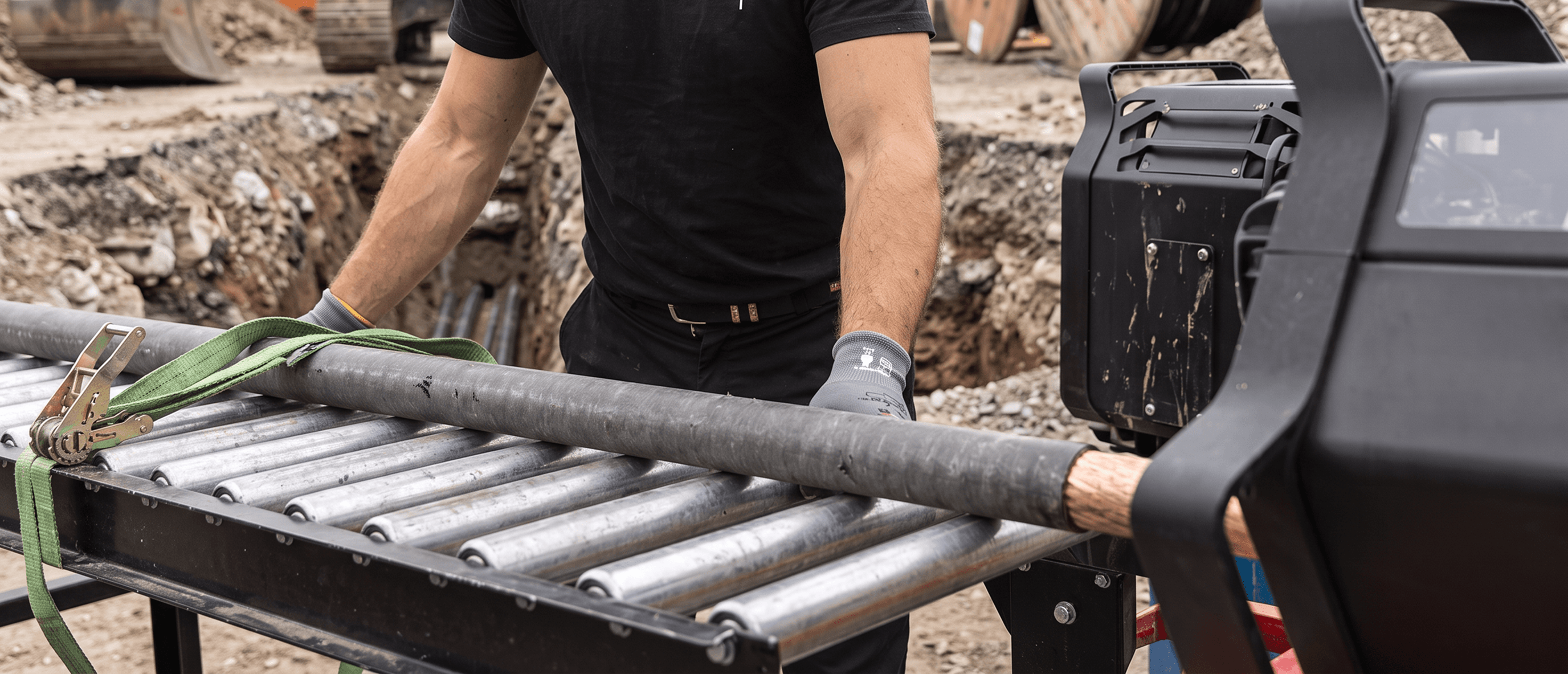

Every connection made out in the field.
Factory-grade result
field conditions
More than a machine. Everything it takes to run the process yourself.
Demo
Training
See how it works, then run it with your own people.
We demonstrate the process at your site or ours, so you can see exactly how it works. Then we train your own technicians to run it independently, with no specialist background required and no reliance on ReliBond being on site.
Buy
Lease
Own the equipment outright, or lease it by the project.
Buying makes sense for continuous, long-term work, while leasing fits a single project. In both cases the connectors are ordered per project, so your costs scale with the work rather than against it.
Service
Support
Supported for the full working life of the machine.
Every Terminator carries built-in sensors, so performance can be monitored and serviced before anything interrupts your work. Software updates and ongoing support keep the machine current for years, protecting your investment long after installation.
Bring factory-grade connections to your next field project.
